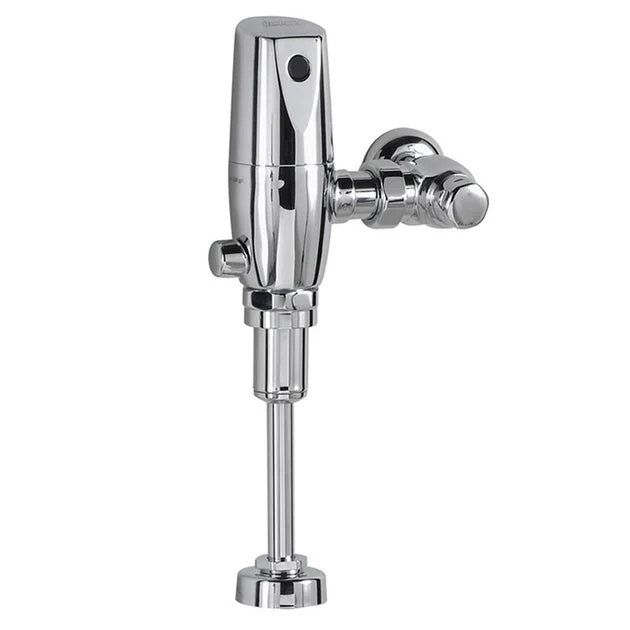

Selectronic electronic flush valves are engineered to meet the demands of high-use spaces with a design that offers water-saving operation, easy installation, and lost-cost maintenance. Designed for use with 3/4″ top spud urinals, this 1.0 gpf Selectronic flush valve uses an included factory-installed CR-P2 lithium battery that provides up to 4 years of battery life (approximately 200,000 cycles). Its exclusive pressure compensation feature delivers a constant flush volume regardless of the water pressure. The valve cannot be adjusted to deliver more or less water to ensure water savings and performance. Features a self-cleaning piston to reduce clogging, a mechanical override button to flush the valve without power, a fail-safe to automatically close the valve if there is a loss of water pressure, a stadium mode to conserve water during periods of heavy usage, and chemical-resistant EPDM seals for extended life. An adjustable sanitary flush feature cleans the fixture and maintains the seal trap. Inlet includes a 3/4″ sweat solder, an angle stop with back flow protection, and a vandal-resistant cap. Outlet includes a 3/4″ high-back pressure vacuum breaker with tailpiece, spud coupling, and flange. Does not have external volume adjustment.
- 1.0 gpf
- Proximity system for hygienic hands-free operation
- Positive seal for leak-free performance
- ADA compliant
- Can be installed right or left-handed
Specifications
| Model Number | 6063.101.002 |
|---|---|
| Flush rate | 1.0 GPF |
| Finish | Polished Chrome |
| Spud type | Top |
| Spud size | 3/4 IN |
| Ada compliant | Yes |
| Actuation type | Sensor-Operated |
| Product type | Urinal |
| Part number | 6063.101 |
| Material | Brass |
| Inlet size | 3/4 IN |
| Outlet size | 3/4 IN |
| Height | 16-1/2 IN |
| Style | Transitional |
| Color family | Chrome |
| Collection | Selectronic |
